Snow Blower Sizes from Compact to Farm Tractor

Performance that’s out of this world!

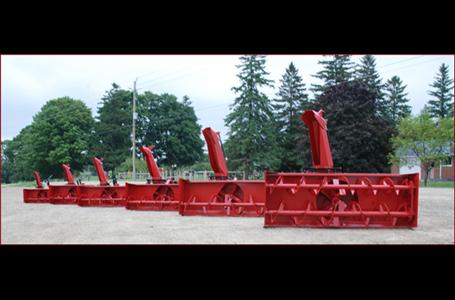

M.K. Martin’s Meteor Series Snow Blowers are built to get your work off the ground with durable performance and high-capacity design. With a range of models from the 12 HP compact tractor to 125 HP farm tractors available, nothing moves snow more than being hit by a Meteor

Meteor Snow Blower Features:
Chute Rotation – Meteor Snow Blowers get the snow out of your way and put it where you want it. Our chute rotators come in manual or our new bolt on hydraulic.
Skid Shoes – For even more protection of surfaces and your blower, bolt on skid shoes are available as an option

High Tensile Steel Ribbon Flighting – To make sure you get the longest dependable service from your blower all Meteors have the highest quality High Tensile Steel Ribbon flighting on the augers for biting strength to chew through snow.

Gearbox – The heart of meteor’s power train is the time-proven Comer gearbox.

Four Blade fan – The Meteor four blade fan is ruggedly designed and built to quickly and consistently blow the snow out of the chute

Chute Deflector – All models give even more control with a chute deflector that is adjustable. Make your blower even more convenient with the hydraulic option.

1000 RPM PTO kit – For the 97 and 108 models, a kit is available to allow larger tractors to run at 1000 RPM PTO. The kit also allows the PTO to run straighter and therefore more efficiently.

Multiple Colors – meteor Snowblowers are available in five colors to fit the way you work

3 Point Hitch Quick Attach Compatible – All models are built standard with 3 point hitches in Category 1 or Category 2, and are completely compatible with Quick Attach


SB46
SB51
SB60

Skid Shoes
Weld On ¼ x1½
Weld On 3/8 x 1½
Weld On 3/8 x 1½

Cutting Edge
¼ x1½
3/8 x 1½
3/8 x 1

Cutting Width
46”
51”
60”

Auger




Tube Size
1 ¾ ” OD
2 3/8 “ OD
3 ½ “ OD

Flighting Size
1/8 x 1 ¼
3/16 x 2 ¼
¼ x 2 ¼

Auger Diameter
10”
14”
14”

Recommended HP
12
15
20

Roller Chain Drive
# 50
# 50
# 50

3HP Category
CAT. 1 & Quick Attach
CAT.1 & Quick Attach
CAT.1 & Quick Attach

Chute Rotation
Manual or Hydraulic(opt)
Manual or Hydraulic(opt)
Manual or Hydraulic(opt)

Chute Diameter Outlet
5 ½ ”
8”
8”

Overall Height of Main Body
20”
25”
25”

Chute Deflector
Manual Adj.
Manual Adj.
Manual Adj.

Fan Diameter
17”
21”
21”

Fan Depth
4”
6”
6”

Auger Drive Shaft Size
1”
1”
1”

Fan Output Shaft Size
1”
1”
1”

Weight
286 LBS
366 LBS
396 LBS





SB68
SB75
SB87S

Skid Shoes
Weld On 3/8 x 1½
Weld On ½ x 1½
Weld On ½ x 2

Cutting Edge
3/8 x 1
½ x 1½
½ x 2

Cutting Width
68”
75”
87”

Auger




Tube Size
2 3/8 “ OD
3 ½ “ OD
3 ½ “ OD

Flighting Size
3/16 x 2 ¼
¼ x 2 ¼
5/16 x 2 ¼

Auger Diameter
14”
15”
19”

Recommended HP
35
50
60

Roller Chain Drive
# 60 Heavy
# 60 Heavy
# 60 Heavy

3HP Category
CAT. 1 & Quick Attach
CAT.1, Cat 2 and Quick Attach
CAT.2 & Quick Attach

Chute Rotation
Manual or Hydraulic(opt)
Manual or Hydraulic(opt)
Manual or Hydraulic(opt)

Chute Diameter Outlet
10 ”
10”
12”

Overall Height of Main Body
29”
29”
36”

Chute Deflector
Manual Adj. or Hydraulic (opt)
Manual Adj. or Hydraulic (opt)
Manual Adj. or Hydraulic (opt)

Fan Diameter
21”
23”
27”

Fan Depth
7”
8”
10”

Auger Drive Shaft Size
1¼ ”
1¼ ”
1¼ ”

Fan Output Shaft Size
1¼ ”
40 MM
40 MM

Weight
506 LBS
748 LBS
1034 LBS







SB87D
SB97S
SB97D

Skid Shoes
Weld On ½ x 2
Weld On ½ x 2
Weld On ½ x 3

Cutting Edge
½ x 2
½ x 2
½ x 3

Cutting Width
87”
97”
97”

Auger




Tube Size
3 ½ “ OD
3 ½ “ OD
4 ½ “ OD

Flighting Size
½ x 2 ¼
5/16 x 2 ¼
5/16 x 2 ¼

Auger Diameter
15”
19”
1-19” 1-15”

Recommended HP
60
75
100

Roller Chain Drive
# 60 Heavy
# 60 Heavy
# 80

3HP Category
CAT.2 & Quick Attach
CAT.2 & Quick Attach
CAT.2 & Quick Attach

Chute Rotation
Manual or Hydraulic(opt)
Manual or Hydraulic(opt)
Hydraulic

Chute Diameter Outlet
12”
12”
13”

Overall Height of Main Body
36”
36”
43”

Chute Deflector
Manual Adj. or Hydraulic (opt)
Manual Adj. or Hydraulic (opt)
Manual Adj. or Hydraulic (opt)

Fan Diameter
27”
27”
32”

Fan Depth
10”
10”
12”

Auger Drive Shaft Size
1¼ ”
1¼ ”
1 ¾ “

Fan Output Shaft Size
40 MM
40 MM
2”

Weight
1161 LBS
1106 LBS
1900 LBS





SB108D

Skid Shoes
Weld On ½ x 3

Cutting Edge
½ x 3

Cutting Width
108”

Auger


Tube Size
4 ½ “ OD

Flighting Size
5/16 x 2 ¼

Auger Diameter
1-19” 1-15”

Recommended HP
125

Roller Chain Drive
# 80

3HP Category
CAT.2 & Quick Attach

Chute Rotation
Hydraulic

Chute Diameter Outlet
13”

Overall Height of Main Body
43”

Chute Deflector
Manual Adj. or Hydraulic (opt)

Fan Diameter
32”

Fan Depth
12”

Auger Drive Shaft Size
1 ¾ “

Fan Output Shaft Size
2”

Weight
1980 LBS
