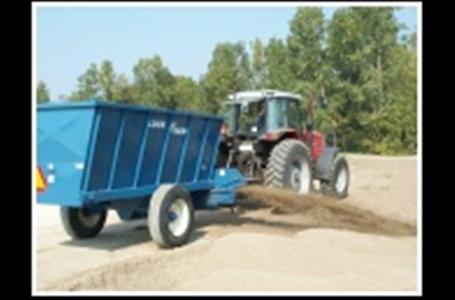

LuckNow's new Material Handler can be used to spread/discharge materials up to 16' away.

Materials: sand, sawdust, bark, mulch, small pea gravel, potash, landscaping mixed soil

Applications

Agriculture - bedding cow stalls with sand, sawdust
Landscaping - spreading landscaping materials such as sawdust, bark and mulch
Construction - spreading small pea gravel & sand, filling trenches
Golf Courses - spreading sand, trench filling, spot dressing

Optional Equipment
• Light bar kit
• Safety chains
Specifications:
Overall Height 92”
Tub Length 143”
Tub Depth 49”
Overall Length 228”
Overall Width 85”
Discharge Conveyor 32” above ground 20” wide belting
Walking Floor Width 40”
Door Opening 40” wide x 12” high
Tires 425 / 70 x 22.5 (16 x 22.5)
Weight 5600 lbs.
Capacity 7 cu. yards (struck level)
Unless otherwise indicated, all dimensions are in inches with standard equipment installed.
Specifications subject to change without notice.
Certain features shown may be optional.
discharge belt
conveyor (pto driven)
adjustable sand deflectors
on discharge
walking floor in hopper
(hydraulically driven with
flow control valve)
